44T2M70-5D-B15 GrassFlap™ Chute Blocker (Compatible w/ Toro TimeCutter and TimeCutter MAX ZTR's w/ IronForged Deck and MyRide Suspension)

44T2M70-5D-B15 GrassFlap™ Chute Blocker

• Direct Bolt with Steel Blocker Plate and SED Pedal
• Includes Cover Plate TC1 and Pedal Mounting Plate 1262

The GrassFlap brand chute blocker is the ideal OCDC, operator controlled discharge chute. The foot-operation allows the user to close the discharge chute at any time, any place, without taking their hands off of the mower controls. The chute blocker plate opens a full 180 degrees and completely clears the edge of the mower to allow the mower to fit in those tight spaces.

Features

• Hands-free operation
• All steel blocker plate
• Direct bolt-on
• Opens 180 degrees to completely clear edge of deck
• No handles or levers to get hung on limbs and shrubs

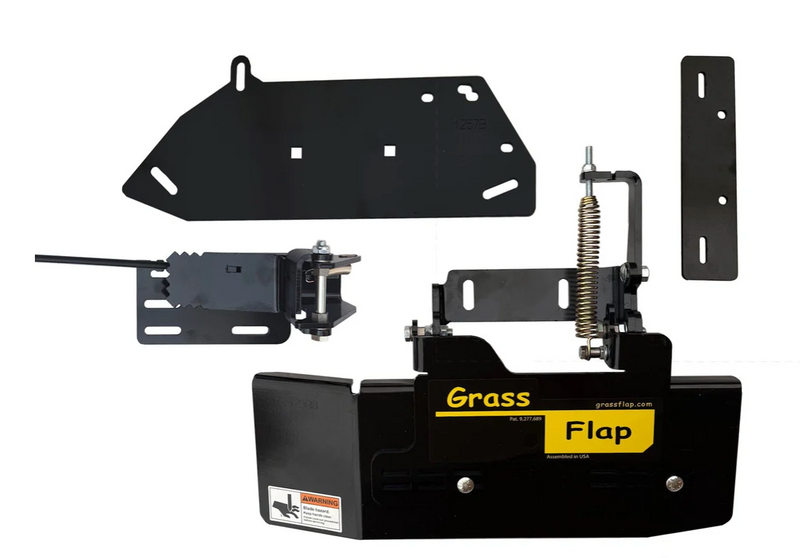

What's Included

The kit includes everything need to install and operate the GrassFlap brand chute blocker. This includes:

• All steel flap assembly to mount to discharge opening
• 5D pedal (10-99-79)
• 70" cable (10-99-07)
• Cover Plate TC1 (A68)

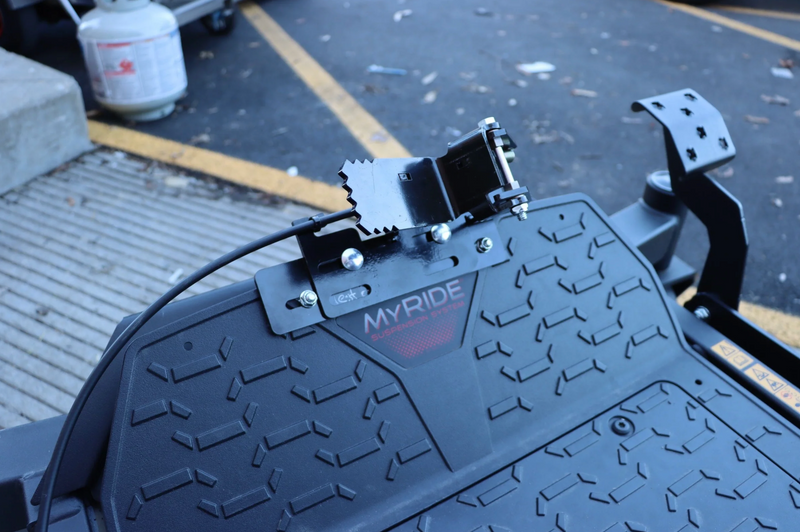

• Pedal Mounting Plate 1262 (A72)
• Mounting hardware for installation

NOTE: The 5D pedal has the cable exit the pedal parallel to mounting surface.

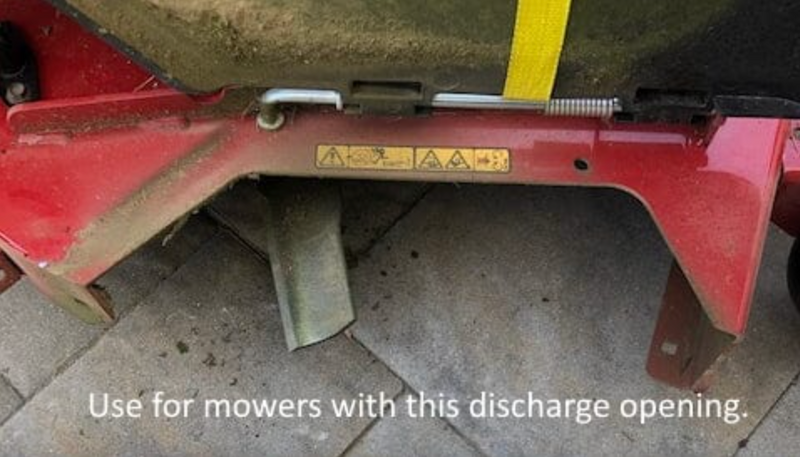

Compatible With

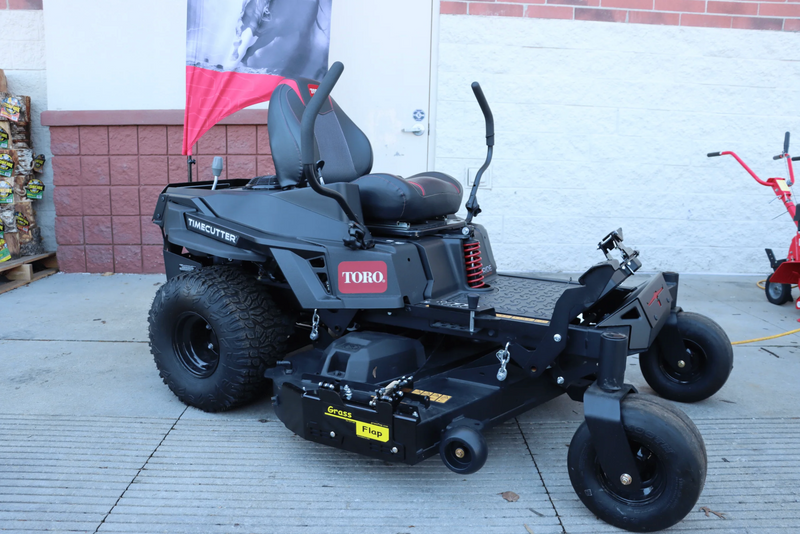

• Toro TimeCutter ZTR's with IronForged deck and MyRide Suspension System
• Toro TimeCutter MAX ZTR's with IronForged deck and MyRide Suspension System.

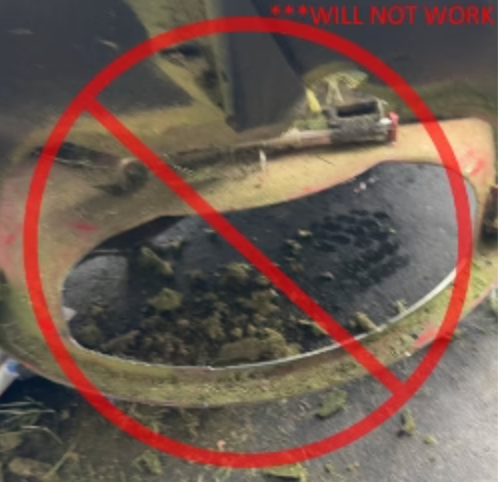

• Does NOT work with NON-IronForged decks.

Installation

• Direct bolt to existing holes on deck and foot platform - no drilling required.
