22236 Toro TurfMaster HDX 30" Walk-Behind Mower w/ Kohler CV224 Engine and Caster Wheels

Sold out
Original price $3,554.00
Original price $3,554.00 - Original price $3,554.00
Original price $3,554.00
Current price $3,199.00
$3,199.00 - $3,199.00
Current price $3,199.00
Availability:
Out of stock

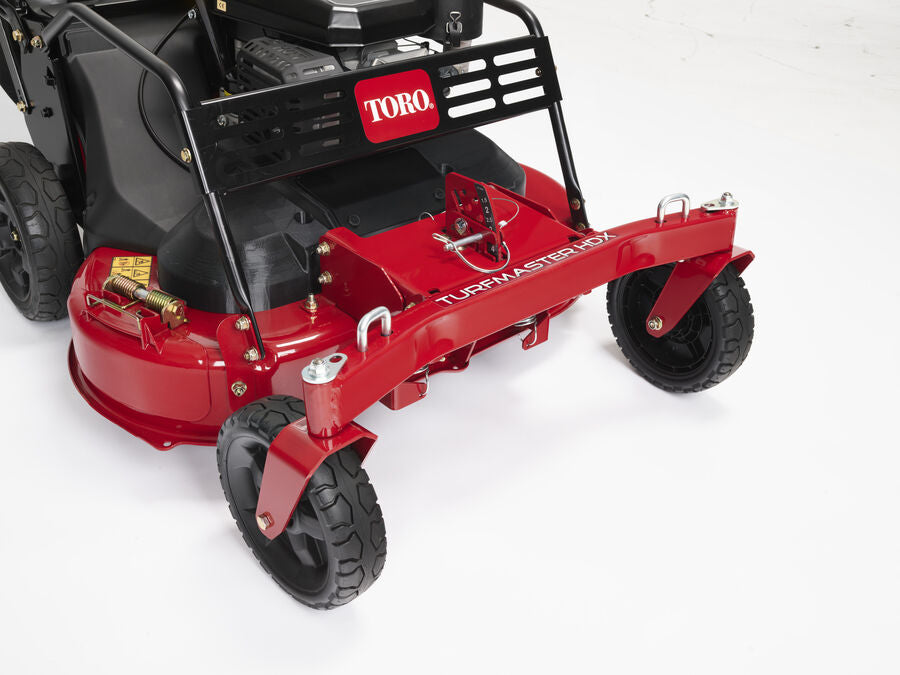

The TurfMaster® HDX 30” with casters delivers the legendary power, durability, and cut quality pros demand—now with even greater maneuverability. Its rugged 30” deck and Kohler CV224 Command Pro engine power through tough conditions, while the caster front end navigates tight spaces with ease and locks in for precision on open terrain.

Built for all-day productivity, it features a two-point height of cut system for quick adjustments, a blade brake clutch for fast stops and restarts, and a large one-gallon gas tank for fewer refuels. The split deck belt cover streamlines maintenance, providing quick access for cleaning and servicing to keep the mower running at peak efficiency. As the lightest 30” caster commercial-grade mower, it’s tough, agile, and ready to tackle any job.

Specifications

Bagger Capacity 2.5 bushels
Blade Design 0.135 in. / 0.343 cm Thick Steel
Blade Engagement Blade Brake Clutch (BBC)
Blade Tip Speed 18,000 ft/min / 5,486 m/min
Box Dimensions 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm
CARB Compliant CARB Compliant
Deck Material 13 Gauge Steel Deck / Cast Aluminum Frame
Deck Size 30 in / 76 cm
Engine Kohler CV224 Command Pro 224 cc
Engine Brand Kohler
Engine Displacement (cc) 224 cc
Forward Mowing Speed Up to 4.0 mph / 6.4 kph
Fuel Capacity 1 gal. / 3.8 L / 4 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments
Mulch, Bag, Side Discharge Bag standard, Mulch standard, Side discharge standard
Number of Blades 2
Product Type Walk Behind Mowers
Product Use Commercial
Spindle Housing Die Cast Spindle, 17 mm Cold Formed Spindle Shafts
Start Type Pull Cord
Tires Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Caster Wheels<br> Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels
Transmission Heavy Duty Self-Propelled
Weight 195 lbs / 88.5 kg
