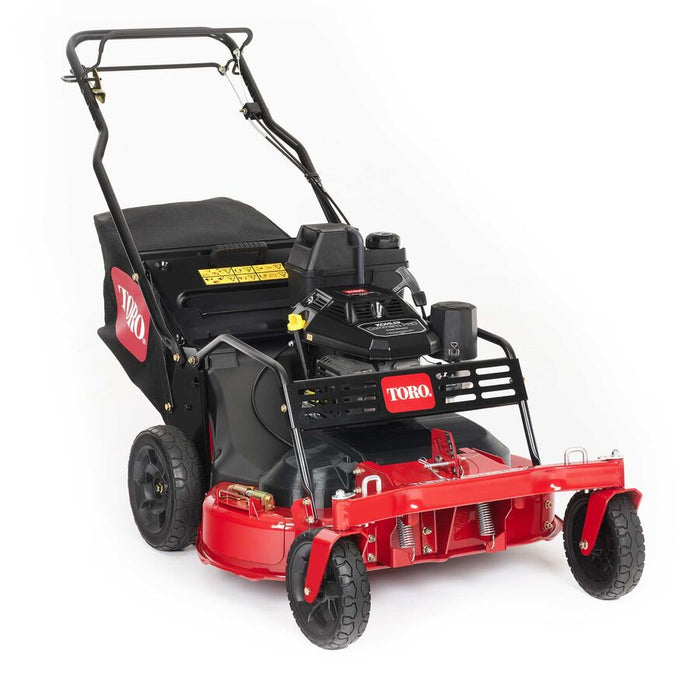

22236 Toro TurfMaster HDX 30" Walk-Behind Mower w/ Kohler CV224 Engine and Caster Wheels
The TurfMaster® HDX 30” with casters delivers the legendary power, durability, and cut quality pros demand—now with even greater maneuverability. Its rugged 30” deck and Kohler CV224 Command Pro engine power through tough conditions, while the caster front end navigates tight spaces with ease and locks in for precision on open terrain.
Built for all-day productivity, it features a two-point height of cut system for quick adjustments, a blade brake clutch for fast stops and restarts, and a large one-gallon gas tank for fewer refuels. The split deck belt cover streamlines maintenance, providing quick access for cleaning and servicing to keep the mower running at peak efficiency. As the lightest 30” caster commercial-grade mower, it’s tough, agile, and ready to tackle any job.
Specifications
| Bagger Capacity | 2.5 bushels |
| Blade Design | 0.135 in. / 0.343 cm Thick Steel |
| Blade Engagement | Blade Brake Clutch (BBC) |
| Blade Tip Speed | 18,000 ft/min / 5,486 m/min |
| Box Dimensions | 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm |
| CARB Compliant | CARB Compliant |
| Deck Material | 13 Gauge Steel Deck / Cast Aluminum Frame |
| Deck Size | 30 in / 76 cm |
| Engine | Kohler CV224 Command Pro 224 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 224 cc |
| Forward Mowing Speed | Up to 4.0 mph / 6.4 kph |
| Fuel Capacity | 1 gal. / 3.8 L / 4 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments |
| Mulch, Bag, Side Discharge | Bag standard, Mulch standard, Side discharge standard |
| Number of Blades | 2 |
| Product Type | Walk Behind Mowers |
| Product Use | Commercial |
| Spindle Housing | Die Cast Spindle, 17 mm Cold Formed Spindle Shafts |
| Start Type | Pull Cord |
| Tires | Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Caster Wheels<br> Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels |
| Transmission | Heavy Duty Self-Propelled |
| Weight | 195 lbs / 88.5 kg |
